Tegola Roof – INDOBITUMEN

TEGOLA BITUMEN ROOF

TEGOLA
THE ROOF OF THE WORLD • INNOVATION IN BUILDING

TEGOLA Corporation

One of the world leaders in the production of roofing, waterproofing and geosynthetic systems for industrial and civil construction.

The products of the corporation are integrated solutions for any construction (pitched, flat and “green” roofs; ventilated facades; drainage and drainage systems; foundation protection systems, various building structures, earthworks and water resources; thermal insulation, sound insulation; road and sports facilities and so on.).

Tegola Rectangular

TEGOLA STANDART

Tegola Standard offers unrivaled strengths, flexibility in assembly , but especially a choice of 13 different colors. With the proposed range of colors, the rectangular model Tegola guarantees perfect chromatic enclosure of the roof in any ambient environment.

Tegola Standard

Tegole	6.9 pcs / m2 (m²/bundle=3,05)
Useful area per pallet	158.6 pcs / m2
Tiles / package	21 pcs
Bitumen type	Tia-Juana
dimensions	1000mm x 340 mmx3,1mm
Exposed area	14.5 cm
Weight	10.7 kg / m2

Tegola Traditional

TEGOLA TRADITIONAL

Tegola Traditional offers elevated flexibility features that allow it to be used in architectural projects where curved forms and slopes require a solution able to adapt perfectly to the shape of the roof. Tegola Traditional proposes a design characterized by a rounded profile and a wide range of colors for perfect roof framing in the architectural context.

Tegola Traditional

Tegole	6.9 Pcs / m2 (m²/bundle=3,05)
Useful area per pallet	158.6 pcs / m2
Plates / pits	21 pcs
Bitumen type	Tia-Juana
dimensions	1000mm x 340 mmx3,1mm
Exposed area	14.5 cm
Weight	10.7 kg / m2

Tegola Mosaik

TEGOLA MOSAIK

Tegola Mosaik , with its hexagonal shape and particular chromatic tone, allows for a remarkable mosaic effect on the roof. Installation is particularly easy; Mosaik Tees are self-adhesive, which increases the impermeability of the cover. Total plate self-adhesive accentuates the guarantee of resistance in areas with strong winds and heavy snow.

Tegola Mosaik

Tegole	7 pcs / m2
Useful area per pallet	128 pcs / m2
Tiles / package	24 pcs
Bitumen type	Tia-Juana
dimensions	1000 x 337 mm
Exposed area	14.3 cm
Weight	9 kg / m2

Tegola Gothik

TEGOLA GOTHIK

Tegola Gothik is the new Tegola Canadese roof proposal. Gothik responds effectively to the demands of creating an original roof and aesthetic value. The chromatic tone of the wrapper and the color range guarantee a generous support for creativity.

Tegola Gothik

Tegole	7 pcs / m2
Useful area per pallet	179.4 buc / m2
Plates / pack	24 pcs
Bitumen type	Tia-Juana
dimensions	1000 x 337 mm
Exposed area	14.3 cm
Weight	9 kg / m2

Tegola Liberty

TEGOLA LIBERTY

With Tegola Liberty, Tegola Canadese guarantees new aesthetic solutions with the same technical features of the ceramised range. Available in 2 colors, frety shingle is characterized by optimal flexibility and high adhesion due to heat-resistant pads.

Tegola Liberty

Tegole	6.9 buc / m2
Useful area per pallet	158.6 pcs / m2
Tiles / package	21 pcs
Bitumen type	Tia-Juana
dimensions	1000 x 340 mm
Exposed area	14.5 cm
Weight	10.7 kg / m2

Tegola Master

TEGOLA MASTER

Tegola Master, due to a particular overlap in two laminated layers, offers a typical relief effect on traditional roofs. The eight colors of the Master range allow for perfect ambient shading. The result is a very flexible and easy to mount tegola even at low temperatures.

Tegola Master

Tegole	7 pcs / m2
Useful area per pallet	128 pcs / m2
Tiles / package	14 pcs
Bitumen type	Tia-Juana
dimensions	998 x 337 mm
Exposed area	14.3 cm
Weight	11.7 kg / m2

Master Coppo

Tegola Master Coppo

The new Tegola Master Coppo shingle, launched by Tegola , is an innovative solution for those who want to keep the traditional look, while enjoying the qualities of a Tegola roof. Innovation is represented by the three-dimensional model that faithfully reflects the look of olans or old tiles, being the ideal material for restoration.

Tegola Master Coppo

Tegole	4.5 Sheet / m2
Useful area per pallet	2 m2
Bitumen type	Tia-Juana Oxidate
dimensions	1000 x 340 mm
Exposed area	24.5 cm
Weight	13 kg / m2

TEGOLA METAL LINE SHINGLES

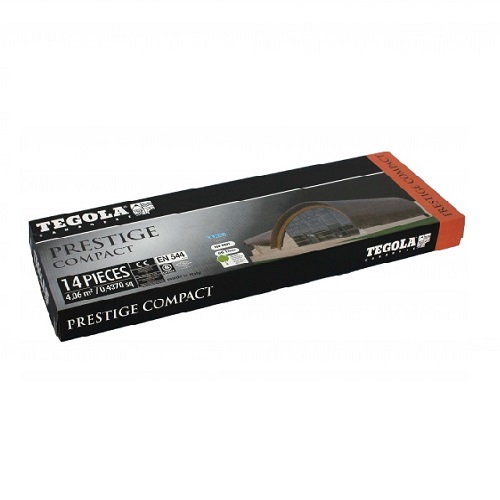

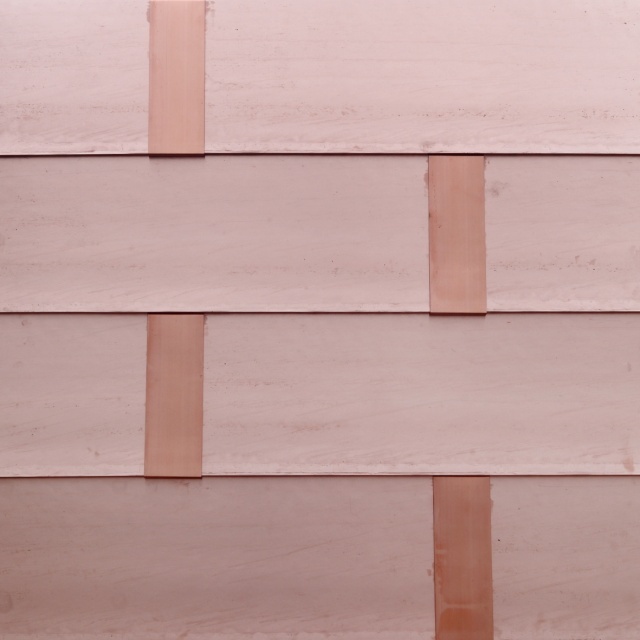

Prestige Compact

Prestige Compact is a tile with copper finish that, due to the large measurements of the plate (100 x 34 cm) and the elevated effect granted by the shingle cover plate, enables us to appreciate the roofs of all shapes and sizes, giving the “prestige” of traditional copper roofs in any urban context.

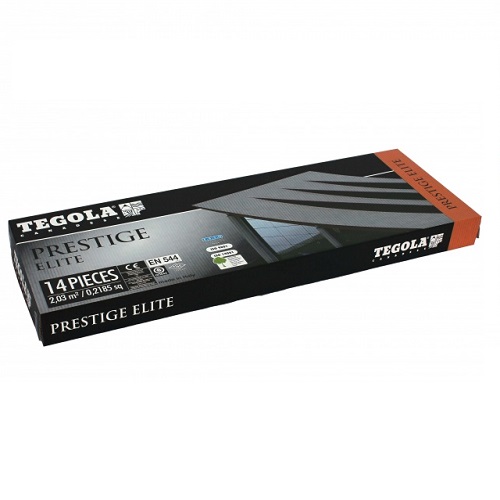

Prestige Elite

Prestige Elite is the result of the most advanced Tegola Canadese’s Research&Development, thanks to the uniqueness of the system of water-jet cutting. The copper is folded to cover the lower edge, giving the best aesthetic and also performance characteristics. The charm of the copper roof, together with the shape and thickness of Prestige Elite, endorses incomparably each building and each roof.

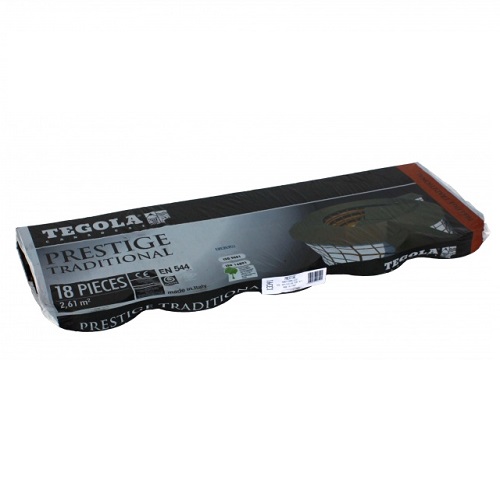

Prestige Traditional

The Prestige Traditional copper roofing tiles provide great flexibility of use, adapting easily to different design situations. Their unique rounded shape allows you to easily cover roofs with curved, conical or irregular shaped surfaces.

Prestige Ultimetal

Prestige Ultimetal is an innovative metal tile, with new and prestigious colours, designed to complement and extend the range of metal tiles with new technical solutions and colour. Prestige Ultimetal is made with a special aluminium alloy and other valuable metals, protected by a pre-painted coating that makes it particularly resistant to oxidation and corrosion, even in extreme conditions. The colours of Prestige Ultimetal are made directly in the “coil” with a sophisticated technology, using special very durable polymers that exceed the stringent “test of accelerated corrosion” (according to ASTM B117 and or UNI 9227). The range of colours are Natural, Slate, Gold and Bronze, for a total offer that will satisfy every type of design request. The technical characteristics of Prestige Ultimetal make it suitable also for the construction of walls, including ventilated ones.

Tegola Prestige Ultimetal Slate — Prestige Ultimetal Slate

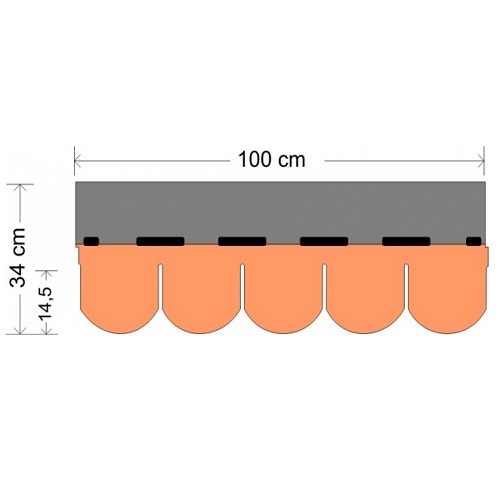

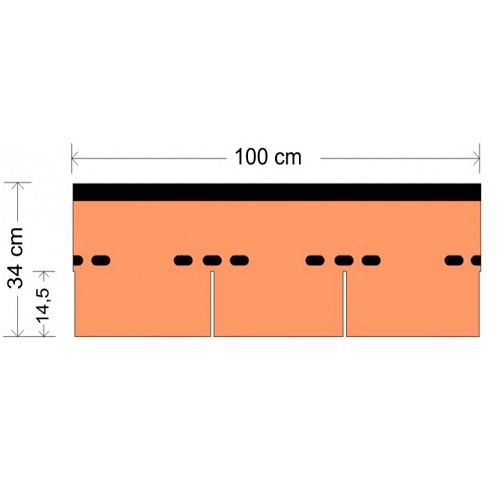

Design Shingle tegola Um — Design Shingle

Choosing a roofing material with the right look

Level of durability is an important decision, because most homeowners replace their roof only once.

Asphalt shingles, due to the wide variety of colors, styles and shapes available, provide a number of options to help a home blend in or stand out in a neighborhood. Developments in durability and performance have improved the ability of asphalt shingles to stand up to the toughest wear and tear, contributing to their longevity.

TEGOLA BENEFIT

Why choose flexible shingles TEGOLA?

Stability and durability A

Special compounding fiberglass reinforcement layer gives the finished tile 30% increased strength characteristics. A special method of weaving fibers of optimum density ensures durability and stability of the form for the entire period of operation of the roof. Working range from -70 C to +140 C.

Reliable and durable color

The use of granules of three different fractions ensures complete and reliable protection of the upper layers of bitumen from solar radiation and mechanical damage. The basalt granulate is colored by the exclusive TEGOLA ceramization technology (the dyeing process with inorganic pigments occurs during the burning of mineral granules at a high temperature, T> 650 C).

Longevity resistance

The highest quality bitumen, modified by polymers APP using exclusive technology. The modified molecular structure of polymeric bitumen has unique characteristics in relation to other existing bitumens and guarantees the exceptional resistance of the tile to negative factors that accelerate the aging of bitumen.

Over 40 years of continuous evolution

TEGOLA is one of the world leaders in the production of roofing and waterproofing systems. We are always close to our client, providing anywhere in the world technical support and assistance at any stage of construction “from project to installation” – by virtue of the competencies acquired over 40 years of our professional experience.

Choose your best roof

Looking for roof with lots of choices?

Beautiful, Affordable and Reliable
When it comes to selecting a residential roofing system for your home, asphalt roofing shingles continue to raise the B.A.R., providing a Beautiful, Affordable and Reliable roofing solution for any residence. In addition to having a variety of styles, textures and colors to choose from, asphalt roofing shingles are cost-effective, durable and easy to maintain.

What are the Six Components of a Roofing System?

1. Asphalt Shingles

Asphalt shingles provide the principle water-shedding surface and create the unique look that sets your home apart from others on the block.

2. Underlayment

Underlayment provides an added layer of protection between the wood deck and the shingles, acting as a secondary water barrier.

3. Water Barriers

water barriers protect the vulnerable parts of a roof− such as valleys, around chimneys and other roof protrusions− where water can flow.

4. Starter strip products

Starter strip products are critical for proper shingle installation, and provide the first row of sealant needed to help prevent shingle blow-offs and water penetration.

5. Flashing guard

Flashing is intended to decrease water penetration at objects such as chimneys, vent pipes, walls, windows and door openings to make buildings more durable and to reduce indoor mold problems. Metal flashing materials include lead, aluminium, stainless steel, zinc alloy, and other materials.

6. Sealant Bitustick

BITUMINOUS AND ELASTOPLASTIC SEALANT FOR TEGOLA CANADESE ROOFING TILES

Solvent based sealant used for the cold gluing of Tegola Canadese roofing tiles to the covering details.

Cat.	Product name	Product description
Adhesive	TEGOL TAC	cartridges containing 280 ml of bituminous adhesiveThixotropic and elastobituminous mastic on solvent basis, inert fillers and resins.

Cartridges containing 280 ml of bituminous adhesive

How to install Rectangular Tegola Roof

Download Video Instalation
